Latest High performance engine

[cokey]

more like 6300 ft lbs

I think that one says its 10hp.
But it is going at what , 100 rpm?
That's about 500 lb/ft of torque right?

[lethe]

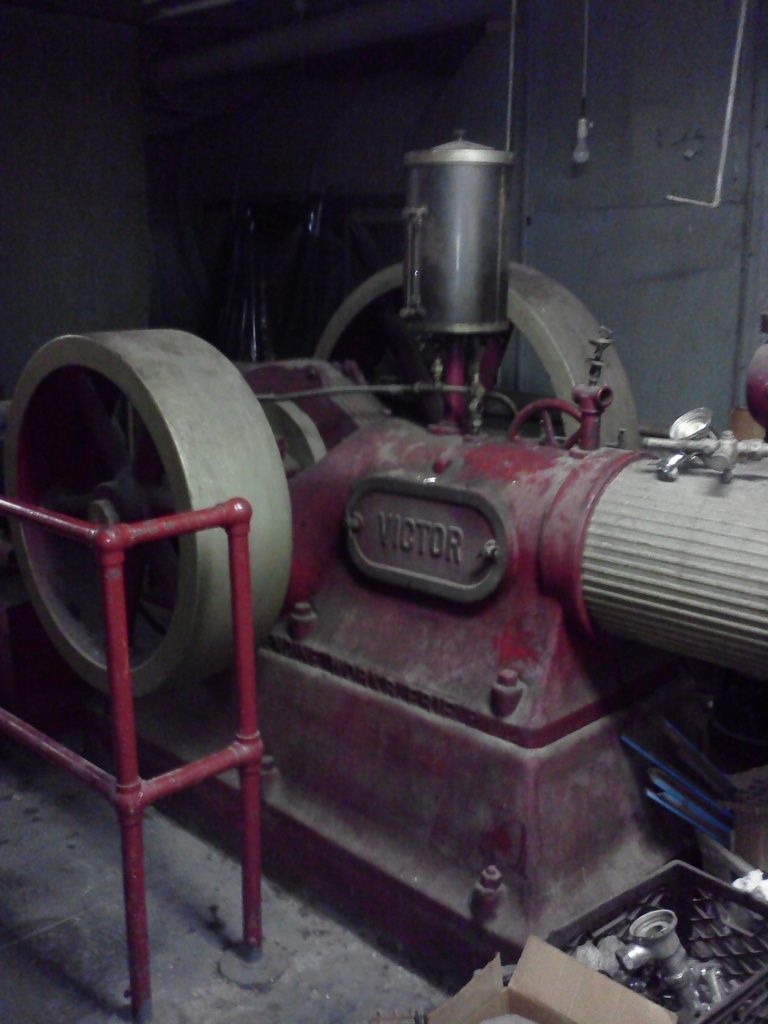

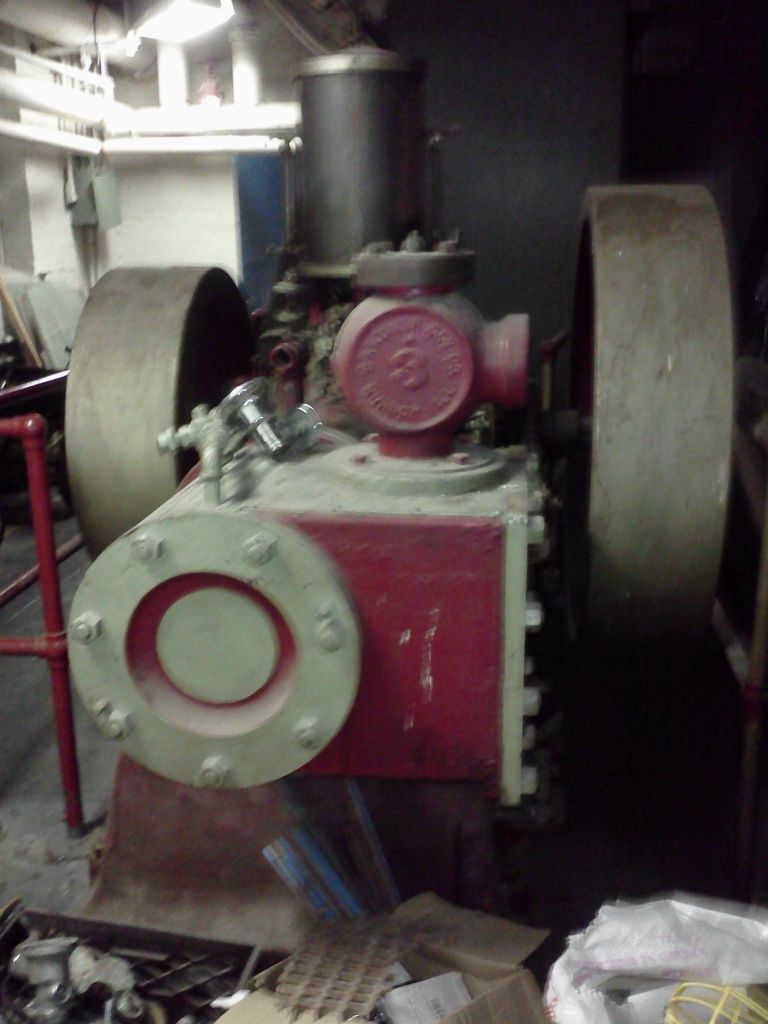

something maybe older that I just remembered I had pictures of, not quite the same thing but similarly cool

[ducpainter]

something maybe older that I just remembered I had pictures of, not quite the same thing but similarly cool

Wasn't that a pump?

[lethe]

Wasn't that a pump?

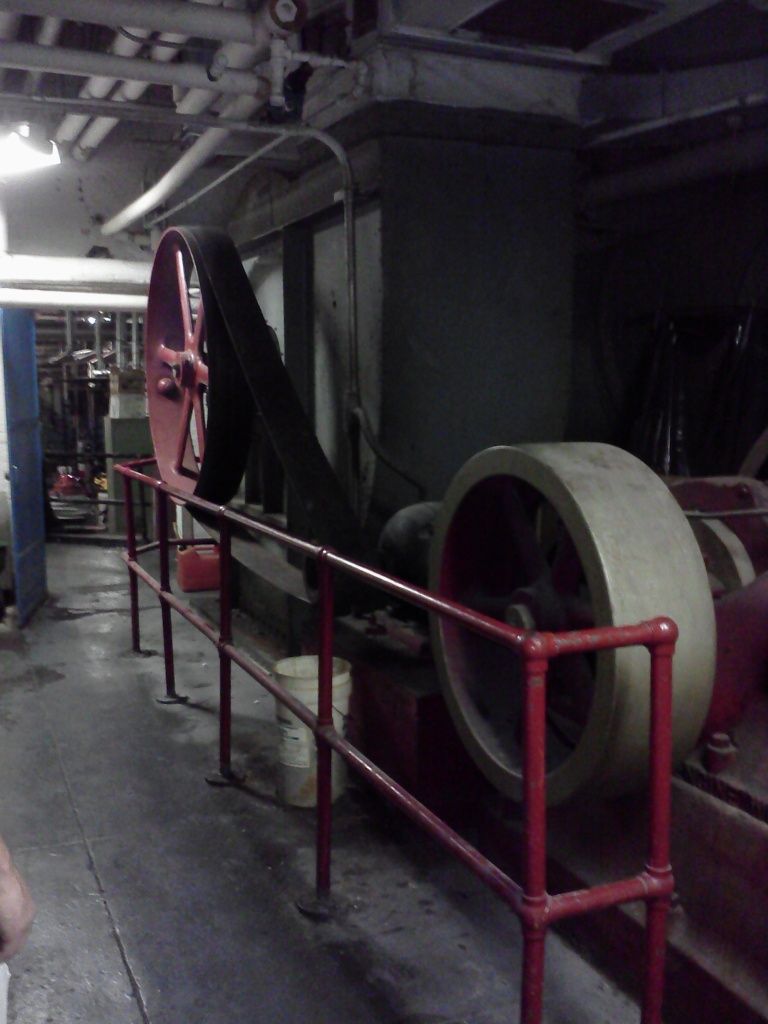

some sort of steam motor for running the fan in the background
it was replaced with a DC motor that the belt goes to now and the whole thing was abandoned years ago and the duct work disconnected

[ducpainter]

All the old iron is fascinating.

[Oldfisti]

All the old iron is fascinating.

Agreed

[lethe]

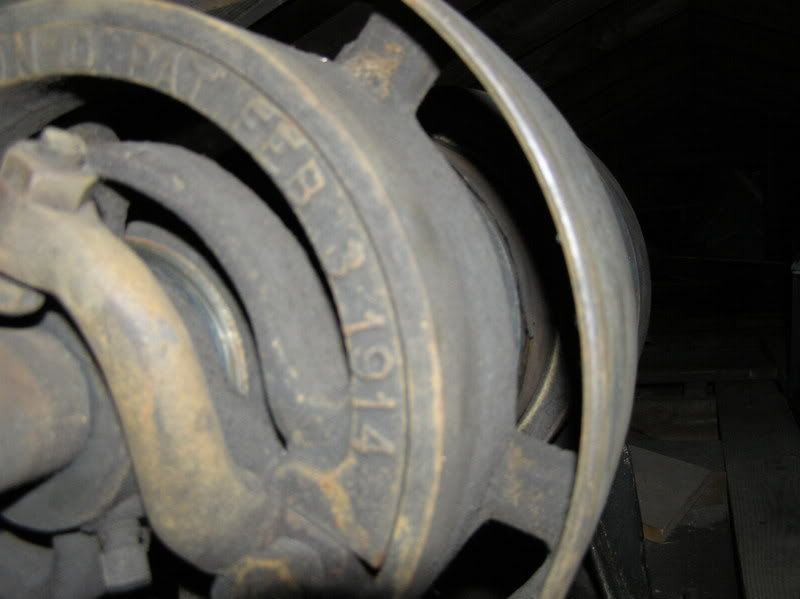

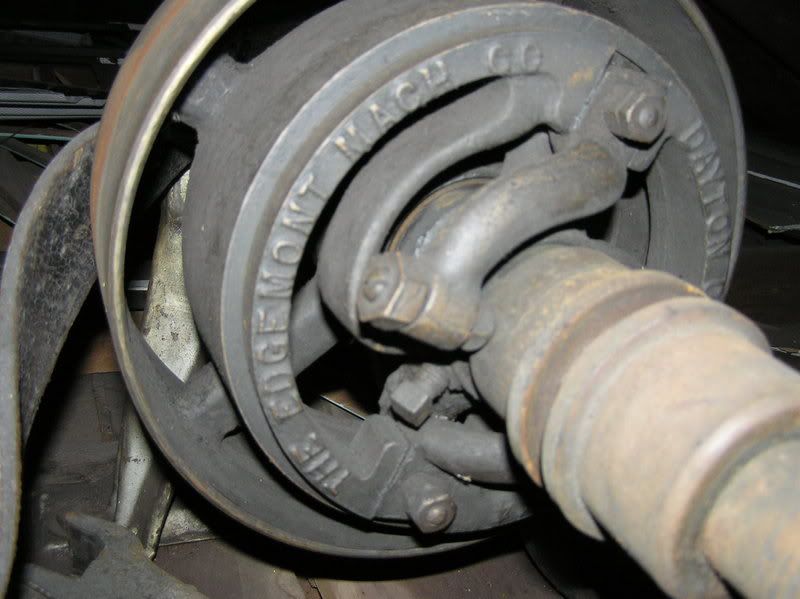

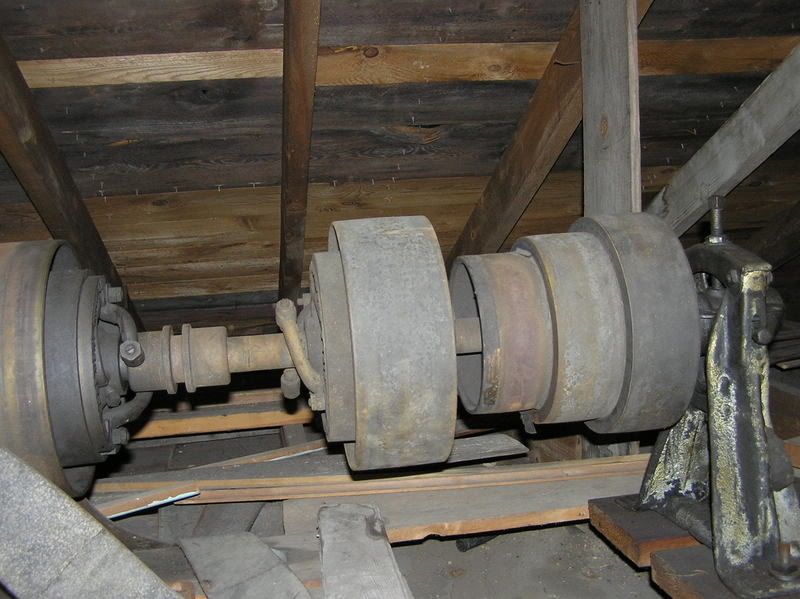

not a motor but I do have this thing in the attic of the garage. i should figure out a way to get it safely down

[the_Journeyman]

Pretty sure the ones in the vid are model E's 30 HP drawbar 60 HP belt. 2cyl with a 10"x 12" bore/stroke.

That's a BFP....  A Big F'n Piston!

JM

[ducpainter]

not a motor but I do have this thing in the attic of the garage. i should figure out a way to get it safely down

That thing looks like a variable speed belt drive.

[lethe]

That thing looks like a variable speed belt drive.

and an old one at that, heavy too so if I ever try to get it down out of there I'll have to do it carefully

[Monsterlover]

and an old one at that, heavy too so if I ever try to get it down out of there I'll have to do it carefully

I'll help. That thing looks cool.

Also, 66 bottom plow?  Holy crap that's some torque. That was awesome!

[cokey]

more like 6300 ft lbs

[yamifixer]

Lethe, was your garage a machine shop in the 10's or 20's? that looks like a variable speed take-off from a main line power feed. (very cool) one motor (much like the one that started this thread) ran a shaft that would run multiple pieces of machinery.

[lethe]

Lethe, was your garage a machine shop in the 10's or 20's? that looks like a variable speed take-off from a main line power feed. (very cool) one motor (much like the one that started this thread) ran a shaft that would run multiple pieces of machinery.

yup
The original garage is 20x40 and then in the 60's he added on the 10x40 on the side and the 30x30 in the front.
A bunch of the really cool stuff got auctioned off before we bought the house such as the ice fishing rig the guy built that he'd drive right over to the lake and fish from inside of

[the_Journeyman]

That ice fishing rig sounds really cool Lethe!  The motor in the attic is plenty cool too.

JM
