SSS Exploded view?

Started by MrFryMoto, October 30, 2008, 10:21:13 AM

Previous topic - Next topic
Print
Go Down Pages1
User actions

MrFryMoto

October 30, 2008, 10:21:13 AM
anybody have any good pictures of a Single Sided Swingarm taken apart?
i'm really interested in the hub and how everything goes  together.

danke
MrFry's News Ticker:
*shifty eyes* someone's been reporting bad news-->Fry-Cycles to offer baked, broiled & deep fried options as well .....My Little Pony still in style.....House NOT destroyed in motorcycle gang's takeover!.....DMF: where the cool kids hang out........

Speeddog

#1
October 30, 2008, 10:40:59 AM

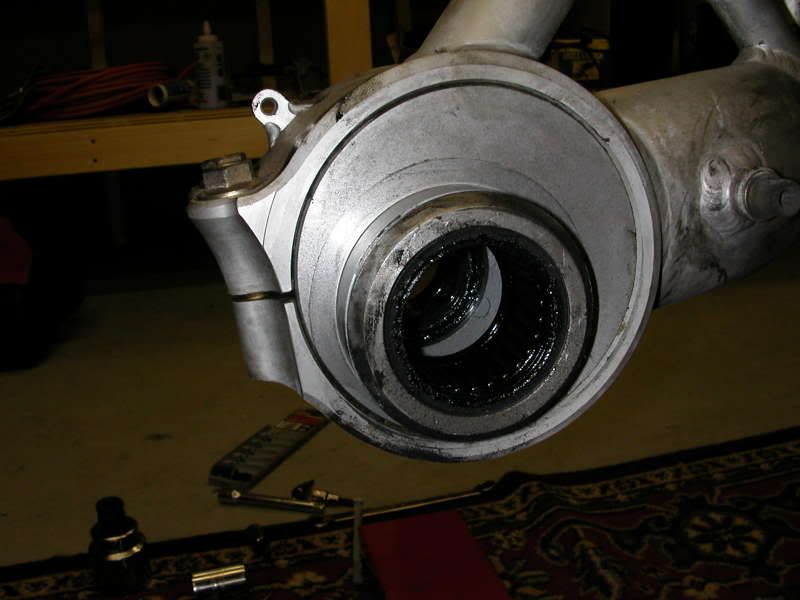

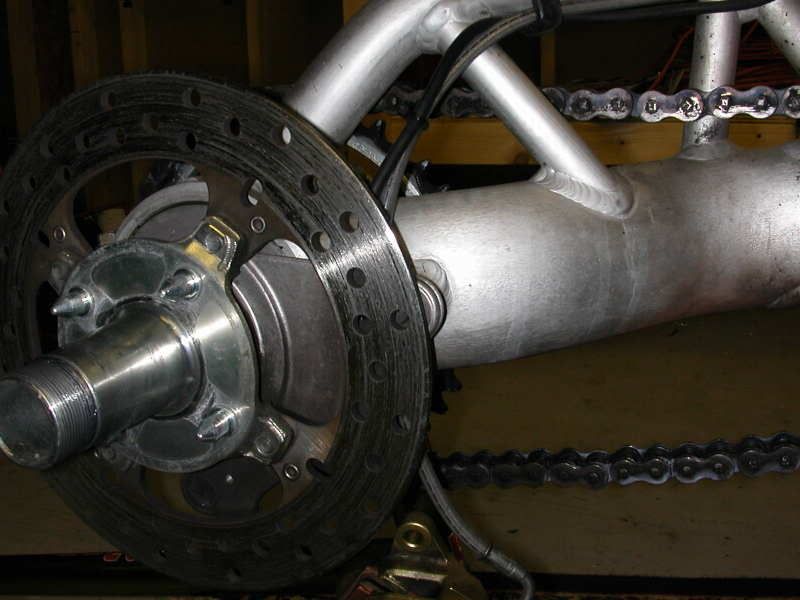

IIRC, starting from the right side:

Wheel axle
seal
big ass needle bearing
double-row ball bearing
snap-ring
sprocket hub
big ass nut

It's been a while since I've had one apart, so I may have missed something.
- - - - - Valley Desmo Service - - - - -
Reseda, CA
(951) 640-8908

~~~ "We've rearranged the deck chairs, refilled the champagne glasses, and the band sounds great. This is fine." - Alberto Puig ~~~

Capo

#2
October 30, 2008, 01:19:50 PM


Capo de tuti capi

DucHead

#3
October 30, 2008, 01:36:15 PM
Quote from: MrFry on October 30, 2008, 10:21:13 AM
anybody have any good pictures of a Single Sided Swingarm taken apart?
i'm really interested in the hub and how everything goes  together.

danke



'05 S4R (>47k mi); '04 Bandit 1200 (>92k mi; sold); '02 Bandit 1200 (>11k mi); '97 Bandit 1200 (2k mi); '13 FJR1300 (1k mi); IBA #28454 "45"
