95 m900 R6 fork swap (pics)

[Düb Lüv]

i've found some sources for the radial caliper spacers.

http://www.shop.kyleusa.com/product.sc?productId=200&categoryId=58

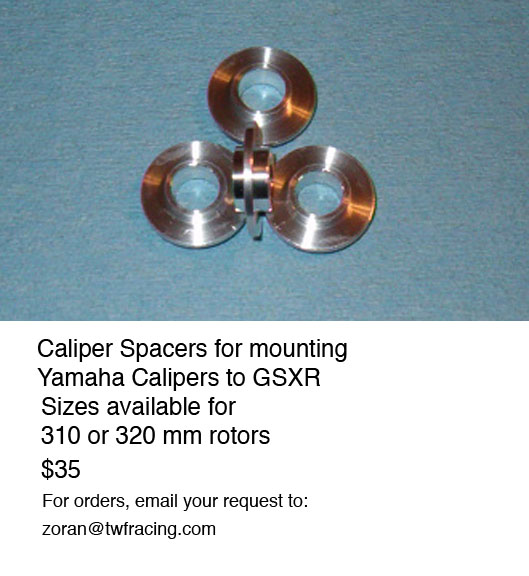

http://www.twfracing.com/images/zparts/R6%20caliper%20spacers%20003%20bg.jpg

[DarkStaR]

woooo! brembo and radials don't go well together. don't quote me on this, but i believe the bolt spacing is 108mm.

i'm a link whore.
http://www.gixxer.com/forums/showthread.php?t=248336

108mm Monoblock caliper set
http://www.yoyodyneti.com/ProductInfo.aspx?productid=220.A397.10

[Düb Lüv]

i just don't i could swallow $1k on calipers. the r6 ones are <$100 all day, and they're suppose to be really good or at least for a street bike. those are pretty gnarly though.

[Düb Lüv]

i got my r6 forks w/matris internals today. fist pumps all around. i went to my buddies shop, cause he has a digital caliper, to take measurements off the forks. all the measurements are in mm's.

Upper triple clamp area:


Lower triple clamp area:


Left fork axle bore:


Left fork axle bore clamp width:


Right fork axle bore:


Right fork axle bore clamp width:


Brake mount spacing:

[DarkStaR]

So, what are your plans for the axel...or bearings?

[Düb Lüv]

i probably going to buy a r6 and machine it to fit, and buy different bearing. or have a custom axle made. not sure yet.

[He Man]

save your self the trouble, ill buy those forks off you.

trust me, you wont regret it.

on a serious note though. look like all you need an proper axle and some spacers.

[DarkStaR]

Which wheel?

[Düb Lüv]

right now i still have the oe 20mm axle 3 spoke brembos.

[Düb Lüv]

HE, i was waiting for you to post. no trouble for me

[DarkStaR]

right now i still have the oe 20mm axle 3 spoke brembos.

ok, I was thinking you were working with a 25mm bearing wheel.

Those fork axle hole seem to be such odd numbers?  What size is the axel suppose to be on the R6?

For example later ducati axels are an even 25mm on the small end and 30mm on the big end.

[Düb Lüv]

i have no idea on the r6 axle, but looking at pics on ebay. the only has 2 diameters. 1 for the (right) 28mm side and the rest of the axle is about 22mm's.

i believe this is how i can get this to work 1 of 2 ways.

1st:
r6 axle
22mm i.d. wheel bearings and new hub spacer
required axle spacers

2nd:
custom axle
25mm wheel bearings and hub spacer
required axle spacers

that's good to know about the 25mm axle. i didn't know it had those diameters. i've never seen one. is there a lot of thickness to machine it down 2mm on the big end and 3mm on the opposite end?
open to any thoughts

[Düb Lüv]

i found 22mm bearings. 22x47x14 honda bearing. honda part number 91002-MCT-003 . about $15 each.

[He Man]

how big are the bearings on your bike? id keep it simple and use your own axle with 2 spacers for the axles and 1 for the wheel spacing.

[Düb Lüv]

i have the 20mm axle. 20x47x14
